About This Product

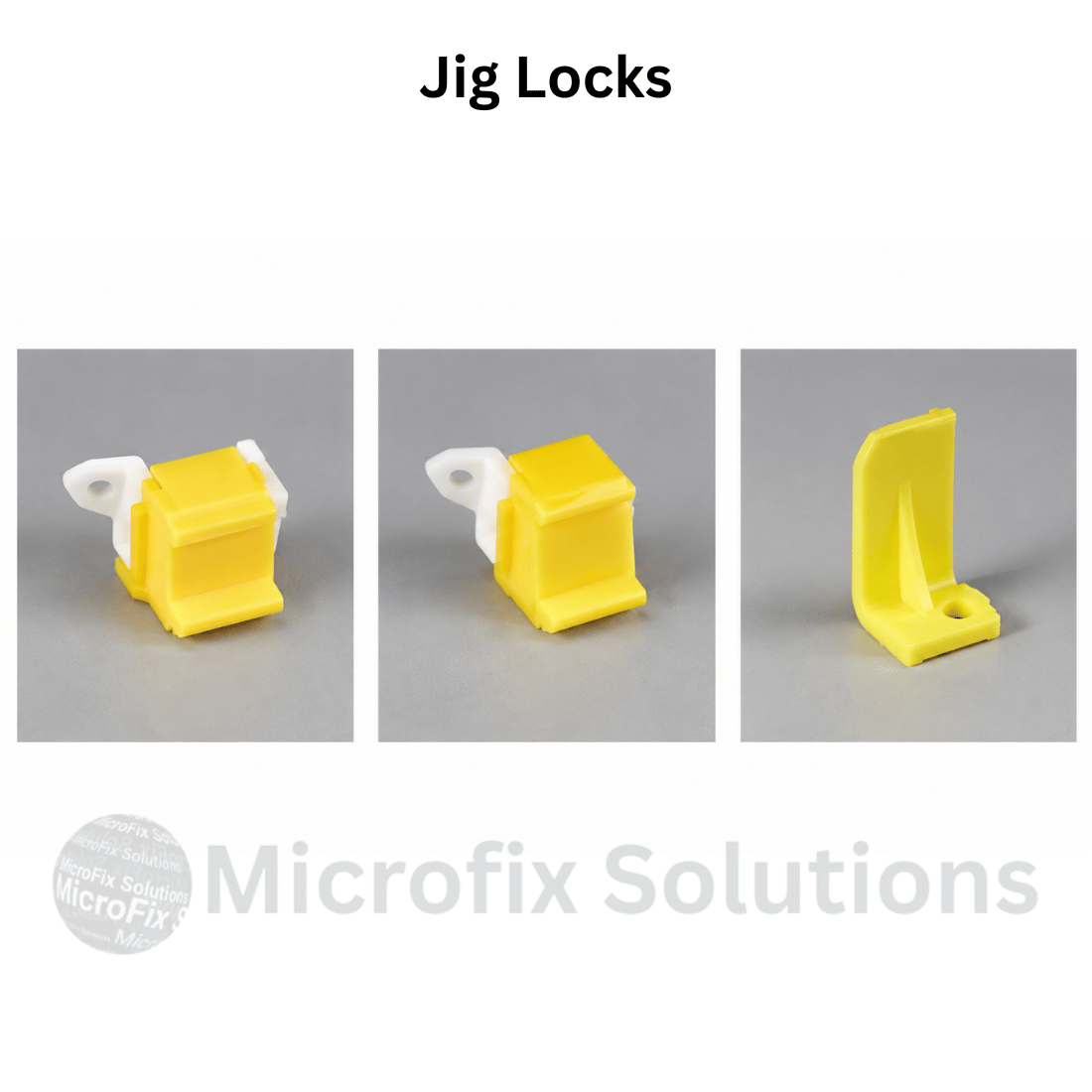

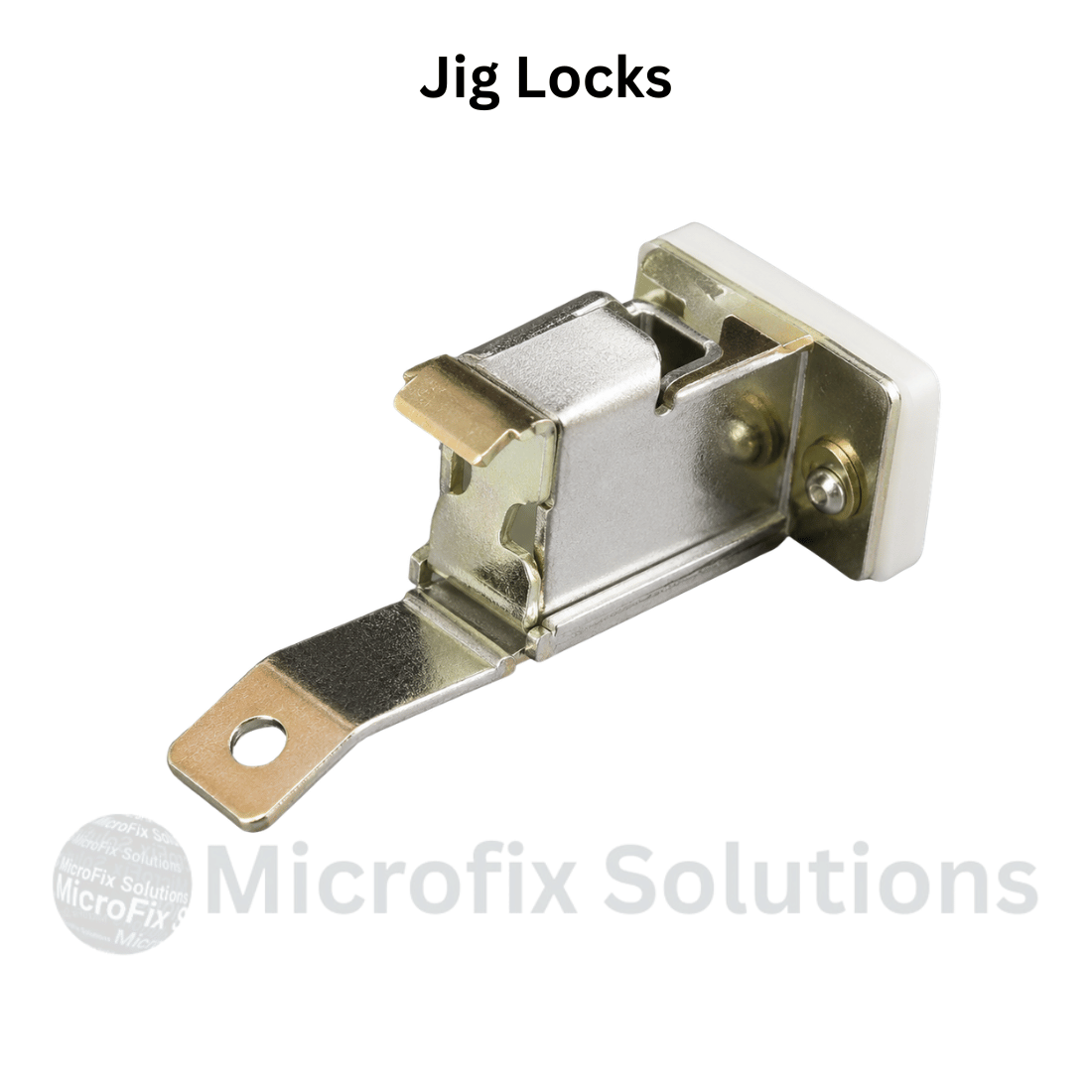

The Jig Locks are fixture accessories designed to securely lock, hold, and position movable sections of PCB test jigs and electronic testing fixtures during operation.
Available in different locking and support configurations, these components help maintain proper fixture alignment and prevent unwanted movement while testing. Their compact construction makes them suitable for ICT, functional test, programming, and customized production fixtures.
Jig locks provide convenient opening and closing during PCB loading and unloading while helping ensure consistent fixture positioning throughout repeated production test cycles.
Specification
| Specification | Details |
|---|
| Product Type | Jig Lock / Fixture Lock |
| Function | Locking, Holding & Positioning |
| Operation | Manual |
| Construction | Metal / Engineering Plastic* |
| Mounting Type | Fixture Mounted |
| Locking Type | Mechanical |
| Configuration | Multiple Designs Available |
| Primary Use | Test Jig & Fixture Locking |
| Compatibility | ICT / FCT / PCB Test Fixtures |
| Size | Model Dependent |
Key Features
- Secure mechanical fixture locking
- Helps maintain accurate jig positioning
- Quick and convenient manual operation
- Supports repeated PCB loading and unloading
- Compact fixture-friendly construction
- Multiple lock configurations available
- Suitable for production testing environments
- Helps improve fixture stability during testing
Applications
- ICT Test Jigs
- Functional Test Fixtures
- PCB Testing Fixtures
- Programming Fixtures
- PCB Inspection Jigs
- Electronics Assembly Fixtures
- Custom Testing Jigs
- Production Test Equipment
- Fixture Clamping Systems
- Jig Assembly & Maintenance
