About This Product

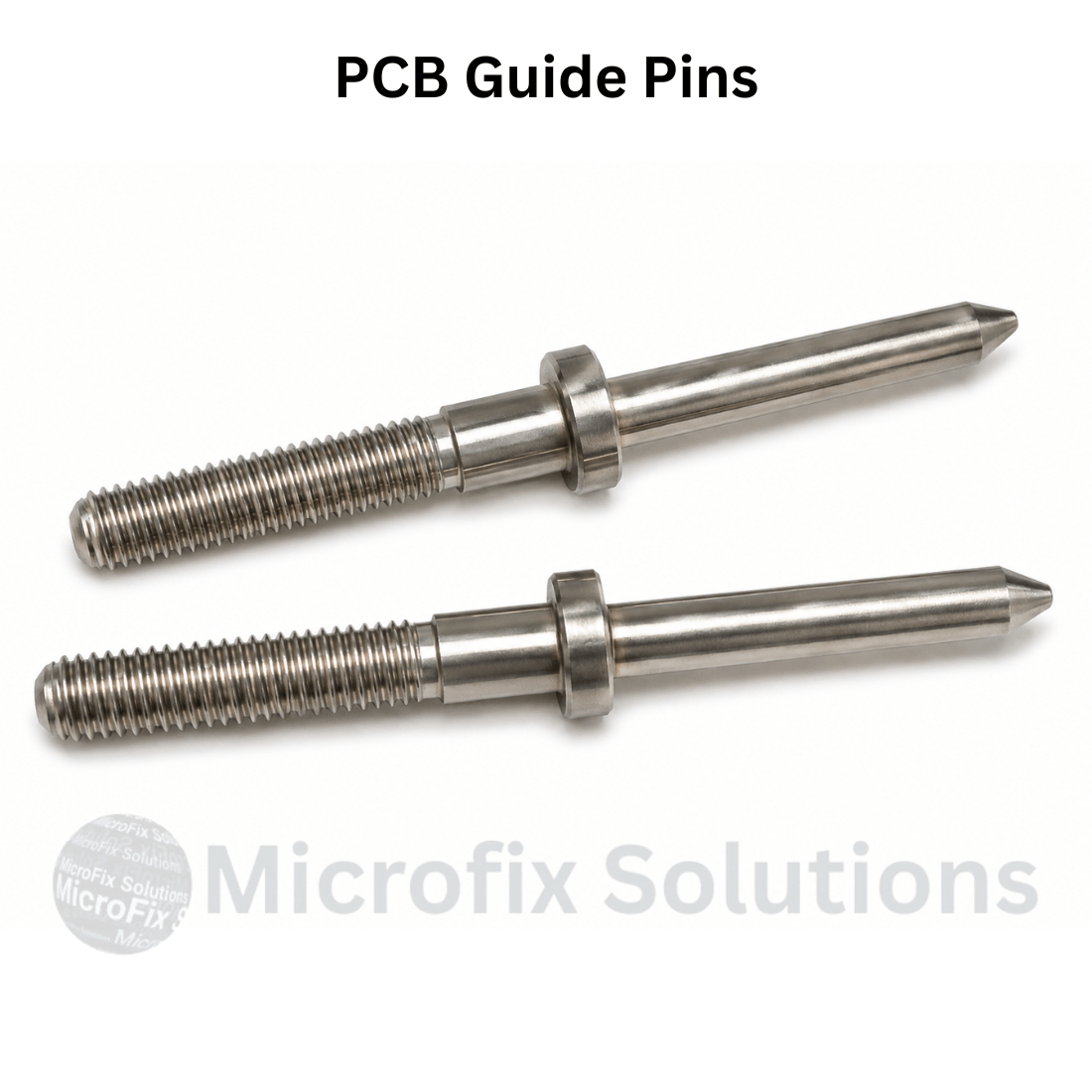

The GP Series PCB Guide Pins are spring-loaded locating components designed to provide accurate and repeatable PCB positioning within electronic test fixtures. Their tapered guide tip helps direct the PCB into the correct position during loading, reducing alignment errors and helping protect the board from improper placement.
The integrated spring mechanism provides controlled contact force, making these guide pins suitable for repeated production testing. Multiple sizes are available to accommodate different PCB locating-hole diameters and fixture requirements.
These guide pins are ideal for ICT, functional testing, programming, inspection, and custom PCB fixture applications where consistent board positioning is essential.

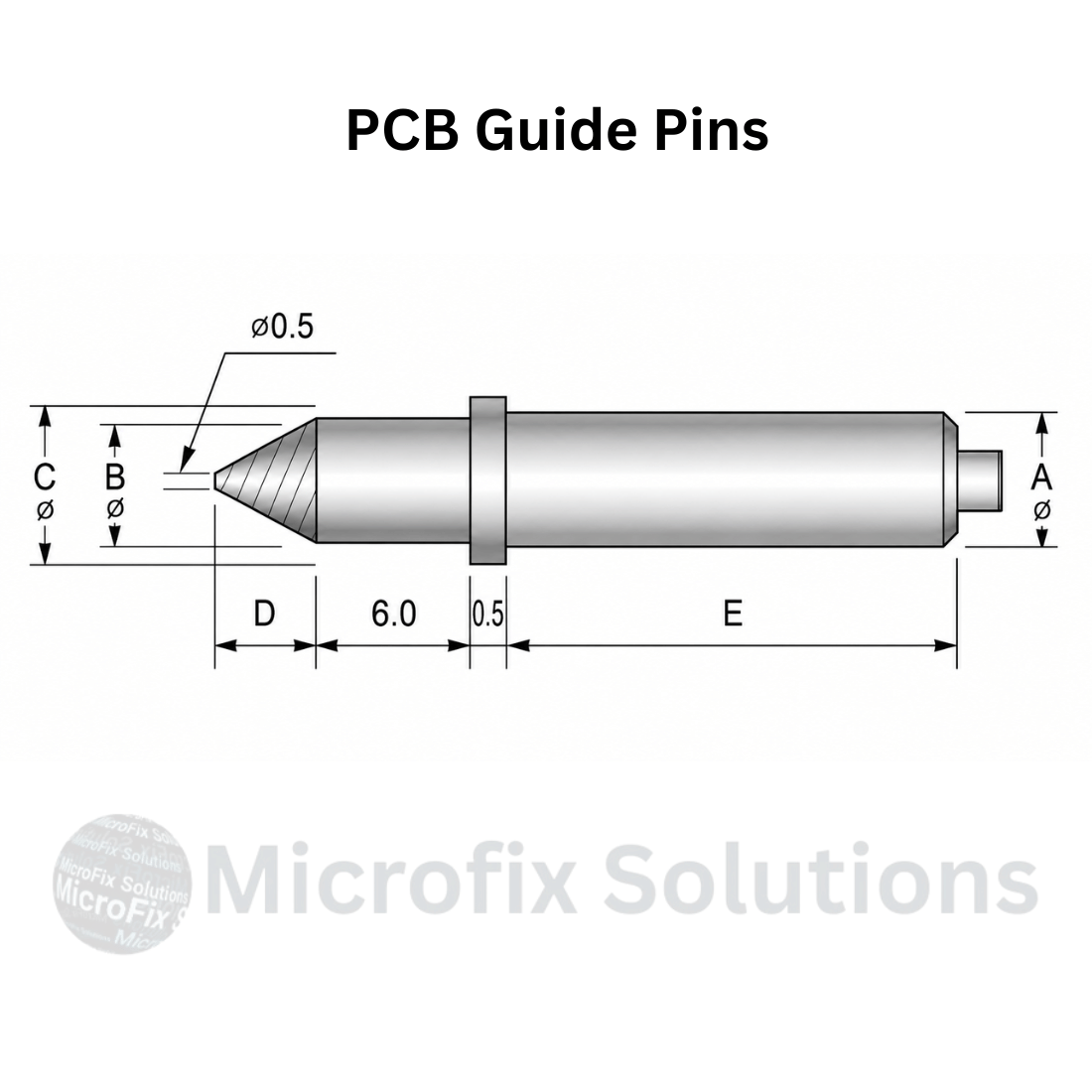

Specification
| Model | A | B | C | D | E | Spring Force |
|---|---|---|---|---|---|---|
| GP-1S | 3.2 mm | 2.48 mm | 3.5 mm | 2.5 mm | 23.5 mm | 200 g |
| GP-11S | 4.0 mm | 3.50 mm | 4.5 mm | 3.5 mm | 23.5 mm | 200 g |
| GP-2S | 5.0 mm | 3.95 mm | 6.0 mm | 4.0 mm | 23.5 mm | 300 g |
| GP-3S | 6.0 mm | 4.95 mm | 7.5 mm | 5.0 mm | 24.5 mm | 300 g |
Key Features
- Spring-loaded guide pin construction
- Precision tapered locating tip
- Multiple diameter options available
- 200 g and 300 g spring-force options
- Helps achieve repeatable PCB positioning
- Reduces board misalignment during fixture loading
- Suitable for frequent production test cycles
- Designed for precision electronic test fixtures
Applications
- ICT Test Fixtures
- Functional Test Fixtures (FCT)
- PCB Alignment Fixtures
- PCB Testing Systems
- Programming Fixtures
- Automated Test Equipment
- PCB Inspection Fixtures
- Electronics Production Testing
- Custom Test Fixtures
- PCB Positioning & Locating Systems
