About This Product

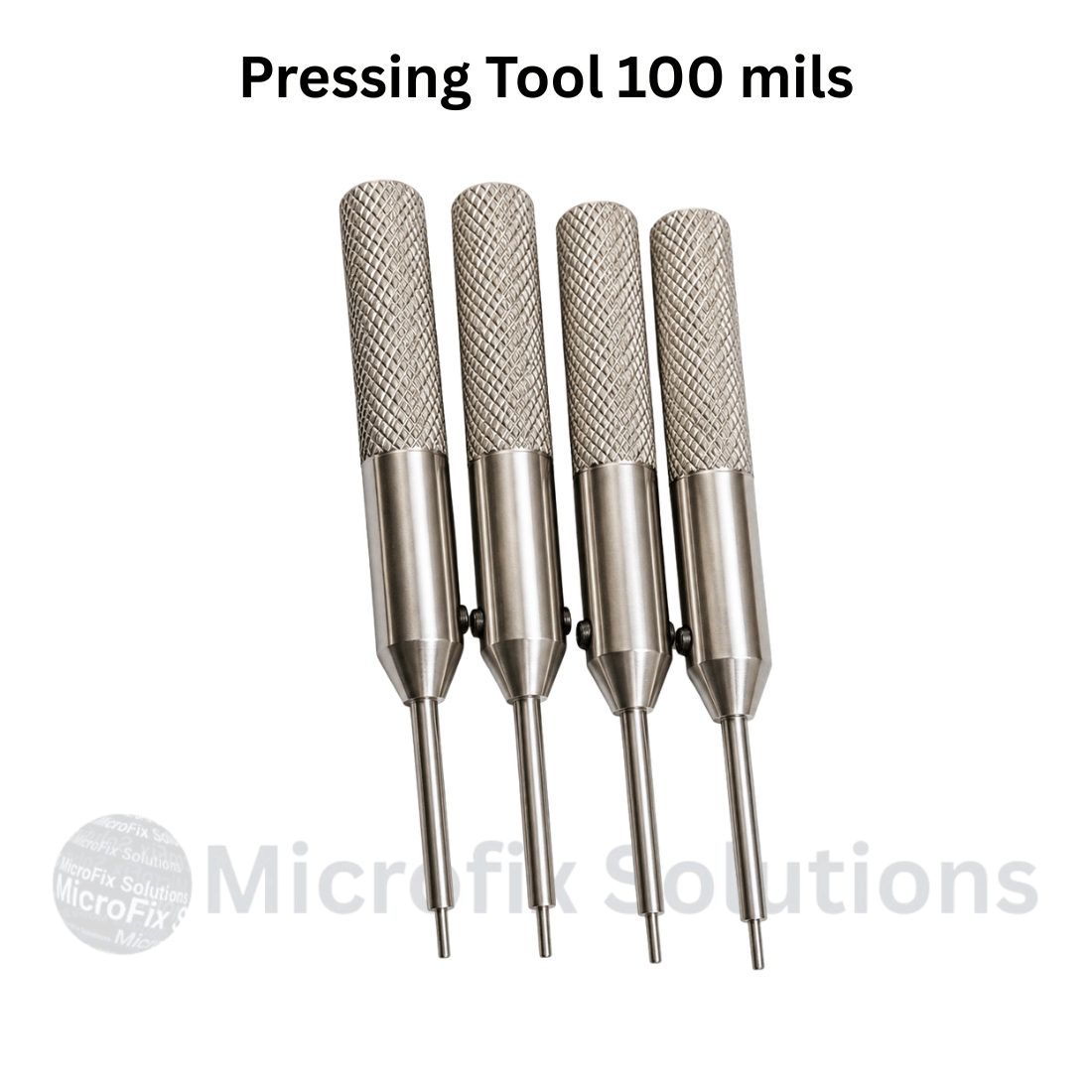

The Pressing Tool 100 Mils is a precision hand tool designed for installing and seating 100 mil test probe receptacles and sockets in PCB testing fixtures.
The tool features a fine pressing shaft for controlled insertion and a knurled metal handle for secure grip and accurate handling. It helps ensure proper receptacle positioning while reducing the possibility of bending, misalignment, or damage during fixture assembly.
Suitable for fixture manufacturers, electronics testing facilities, OEM production lines, and maintenance teams, this tool provides a convenient solution for assembling and servicing ICT and functional test fixtures.
Specification
| Specification | Details |
|---|---|
| Product Type | Pressing / Insertion Tool |
| Tool Size | 100 Mils |
| Pitch Reference | 0.100 inch |
| Metric Reference | Approx. 2.54 mm |
| Operation | Manual |
| Handle Type | Knurled Grip |
| Construction | Metal |
| Tool End | Precision Pressing Pin |
| Primary Use | Probe Receptacle Installation |
| Fixture Compatibility | PCB / ICT Test Fixtures |
Key Features
- Designed for 100 mil probe systems
- Precision pressing shaft for accurate installation
- Knurled metal handle for secure grip
- Helps achieve proper receptacle seating
- Reduces risk of bending or damaging receptacles
- Suitable for repeated fixture assembly
- Easy to use during installation and maintenance
Applications
- Test Probe Receptacle Installation
- Pogo Pin Socket Installation
- ICT Fixture Assembly
- PCB Testing Fixtures
- Functional Test Fixtures
- Electronics Manufacturing
- Fixture Maintenance
- Probe Socket Replacement
- Production Testing Systems
- Electronic Test Equipment Assembly
