About This Product
The 290X3600 is a high-current spring-loaded test probe designed for reliable electrical contact in PCB testing, battery testing, power electronics, and high-current test fixtures. It features a compact 36.00 mm overall length, a 15A current rating, and multiple spring-force options.
| Specification | Details |
|---|
| Product Type | High-Current Test Probe |
| Model | 290X3600 |
| Current Rating | 15A |
| Rated Resistance | < 30 mΩ |

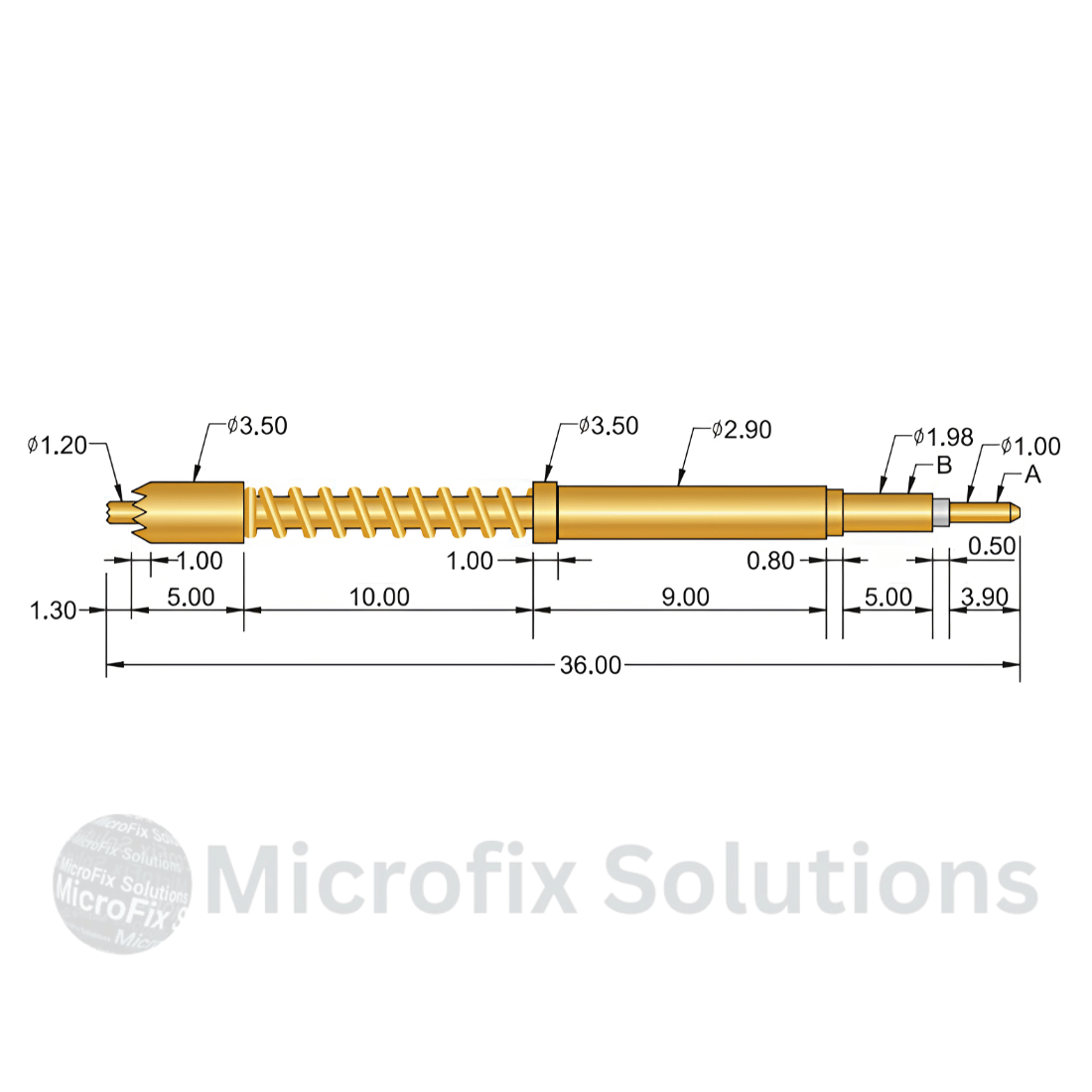

| Overall Length | 36.00 mm |
| Full Stroke | 5.5 mm |
| Spring Force – Starting | 76g |
| Spring Force – 4 mm Stroke | 560g |
| Spring Force – Full Stroke | 750g |
| Plunger Material | BeCu, Gold-Plated |
| Barrel Material | Brass, Gold-Plated |
| Receptacle Material | Brass, Gold-Plated |
| Spring Material | SUS Stainless Steel |
Key Features
- 15A high-current capacity
- Low <30 mΩ contact resistance
- 5.5 mm full working stroke
- Multiple spring-force options
- BeCu gold-plated plunger for reliable conductivity
- Brass gold-plated barrel and receptacle
- SUS spring for durable repeated operation
- Compact 36 mm overall design
Applications
- PCB high-current testing
- Battery testing
- Power electronics testing
- Electrical test fixtures
- ICT/FCT testing
- Automotive electronics testing
- Production-line electrical inspection
- High-current contact applications
