About This Product
The CKS-003 Series Spring Test Probe is a precision-engineered contact probe built for reliable electrical testing in demanding industrial environments. Manufactured using premium beryllium copper plungers with gold-plated contact surfaces and phosphor bronze barrels, the CKS-003 series offers outstanding electrical performance, durability, and mechanical reliability.
Its robust construction makes it suitable for PCB testing, functional testing (FCT), in-circuit testing (ICT), semiconductor inspection, battery contact testing, connector verification, and automated production fixtures. Multiple interchangeable tip styles and receptacle options provide maximum flexibility for custom testing applications.

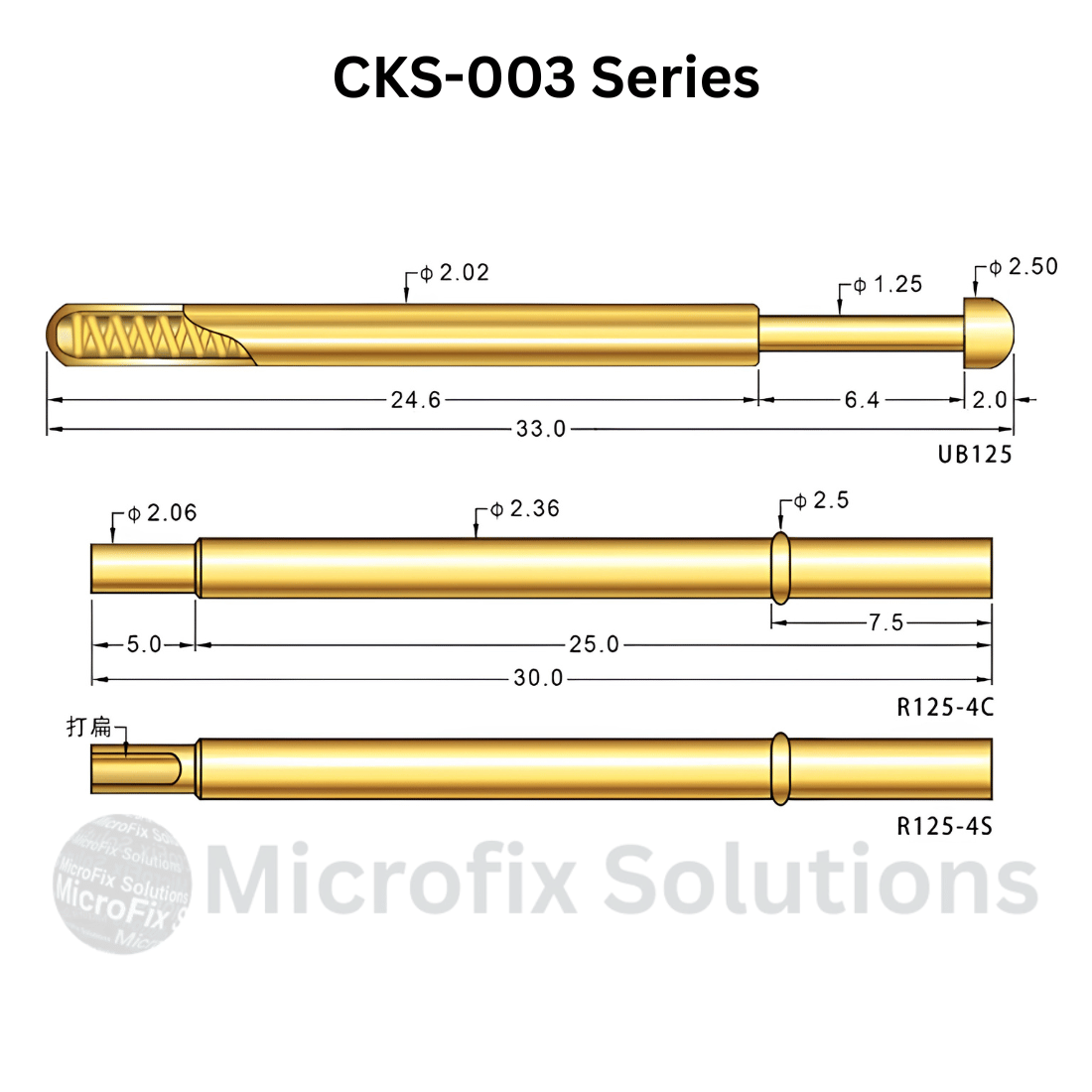

The CKS-003 Series features a 33.0 mm overall length, Ø2.02 mm barrel diameter, 6.35 mm maximum stroke, and 4.4 mm recommended working stroke. Standard models support 5A current, ≤20 mΩ contact resistance, and over 100,000 operating cycles.
| Specification | Value |
|---|---|
| Product Series | CKS-003 |
| Probe Model | UB125 |
| Current Rating | 5A |
| Contact Resistance | ≤20 mΩ |
| Maximum Stroke | 6.35 mm |
| Recommended Working Stroke | 4.40 mm |
| Spring Force | Approx. 1.2 N |
| Contact Material | Heat Treated Beryllium Copper |
| Barrel Material | Phosphor Bronze |
| Surface Finish | Gold Plated |
| Head Diameter | Ø2.50 mm |
| Plunger Diameter | Ø1.25 mm |
| Barrel Diameter | Ø2.02 mm |
| Total Length | 33.00 mm |
| Mechanical Life | 100,000+ Cycles |
| Package Quantity | 5 Pcs |
Key Features
✔ Heavy-Duty Spring Contact Design
✔ Hard Gold-Plated Contact Surface
✔ Low Contact Resistance (≤20 mΩ)
✔ Stable Electrical Performance
✔ Long Mechanical Life (100,000+ Cycles)

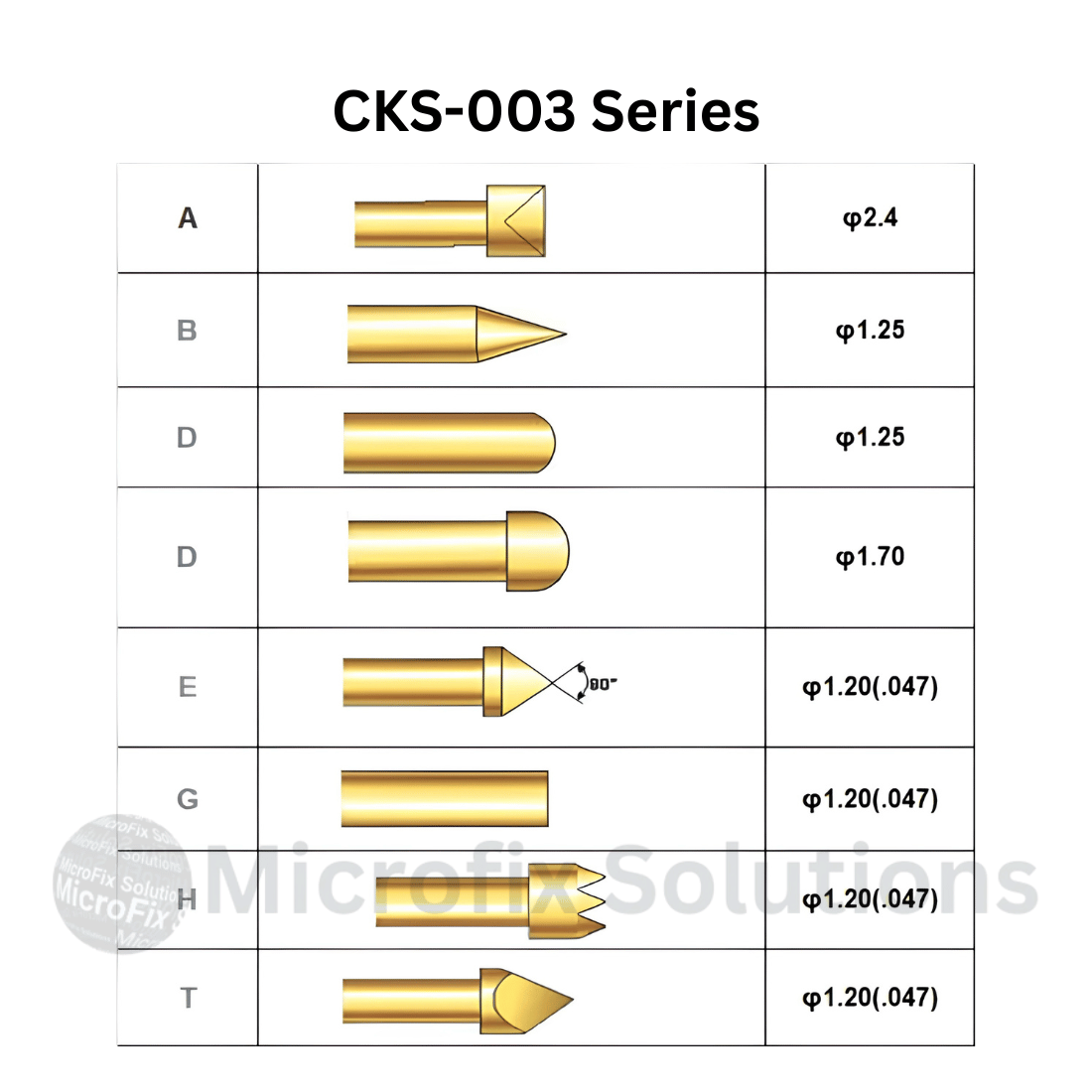

✔ Multiple Tip Style Options
✔ Standard & Crimp Receptacle Compatibility
✔ Suitable for ICT, FCT & ATE Applications
✔ Reliable Performance in Continuous Industrial Testing
Applications
- PCB Testing
- In-Circuit Testing (ICT)
- Functional Testing (FCT)
- Automated Test Equipment (ATE)
- Connector Testing
- Battery Contact Testing
- Semiconductor Testing
- IC Programming Fixtures
- Electronics Manufacturing
- Production Line Inspection
- Quality Control Systems
