The CKS-100 Series Spring Test Probe is engineered for precision electrical testing where consistent contact performance and durability are essential. Manufactured with premium beryllium copper contacts, phosphor bronze barrels, and hard gold plating, the CKS-100 series delivers excellent conductivity and dependable long-term operation.
Its robust construction, multiple probe configurations, interchangeable tip styles, and various receptacle options make it ideal for PCB testing, functional testing (FCT), in-circuit testing (ICT), connector validation, semiconductor inspection, and automated production fixtures.

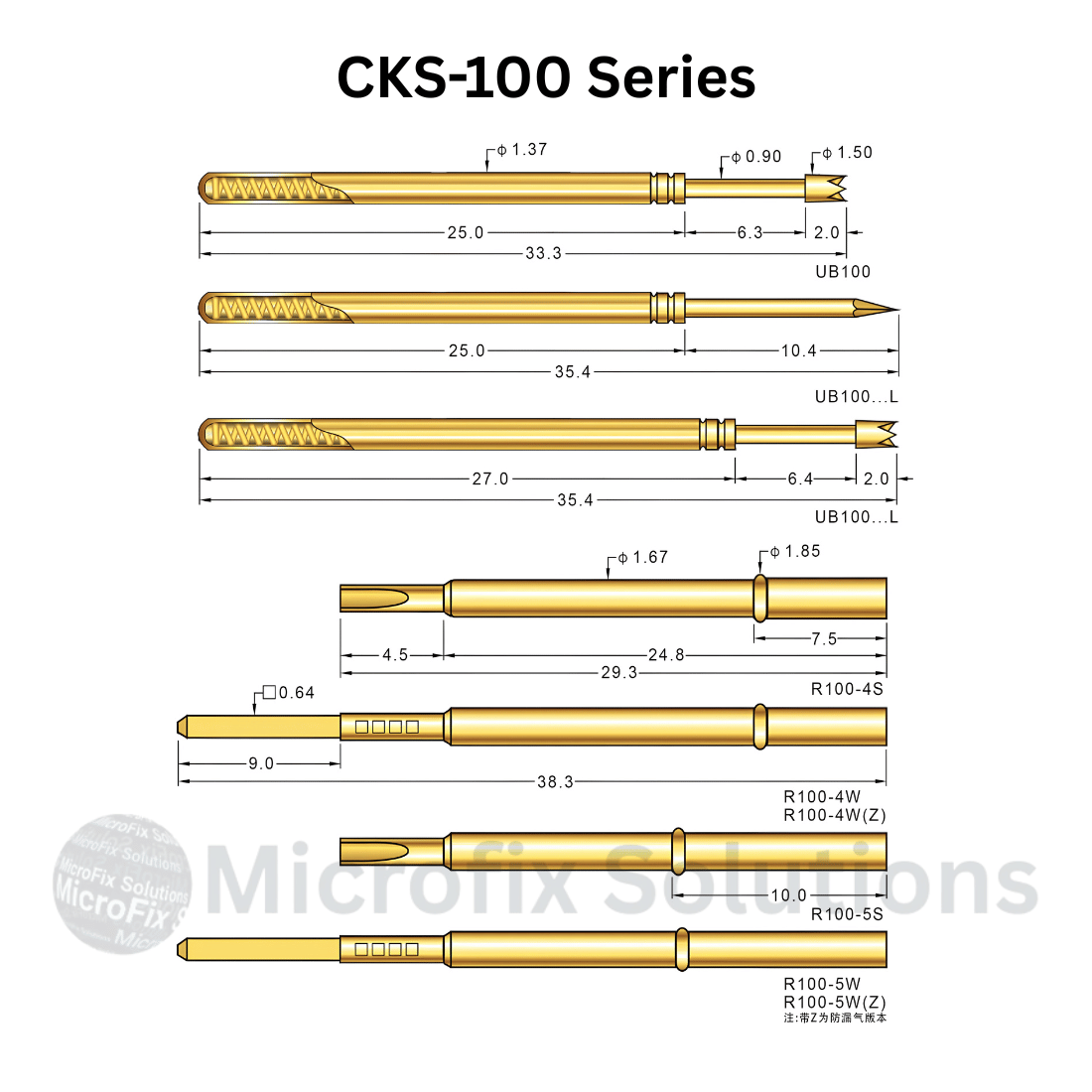

The CKS-100 Series features a 33.3–35.4 mm overall length, Ø1.37 mm barrel diameter, 6.35 mm maximum stroke, and 4.3 mm recommended working stroke, providing excellent performance for industrial electronic testing applications. Typical models support 5A current with ≤20 mΩ contact resistance.
| Specification | Value |
|---|---|
| Product Series | CKS-100 |
| Probe Models | UB100, UB100-L |
| Current Rating | 5A |
| Contact Resistance | ≤20 mΩ |
| Maximum Stroke | 6.35 mm |
| Recommended Working Stroke | 4.30 mm |
| Spring Force | Approx. 2.25 N |
| Contact Material | Heat Treated Beryllium Copper |
| Barrel Material | Phosphor Bronze |
| Surface Finish | Gold Plated |
| Head Diameter | Ø1.50 mm |
| Plunger Diameter | Ø0.90 mm |
| Barrel Diameter | Ø1.37 mm |
| Total Length | 33.3 mm / 35.4 mm |
| Mechanical Life | 100,000+ Cycles |
| Package Quantity | 5 Pcs |
Key Features
✔ Precision Spring-Loaded Contact Design
✔ Hard Gold-Plated Contact Surface
✔ Low Contact Resistance (≤20 mΩ)
✔ High Electrical Conductivity
✔ Long Mechanical Life (100,000+ Cycles)

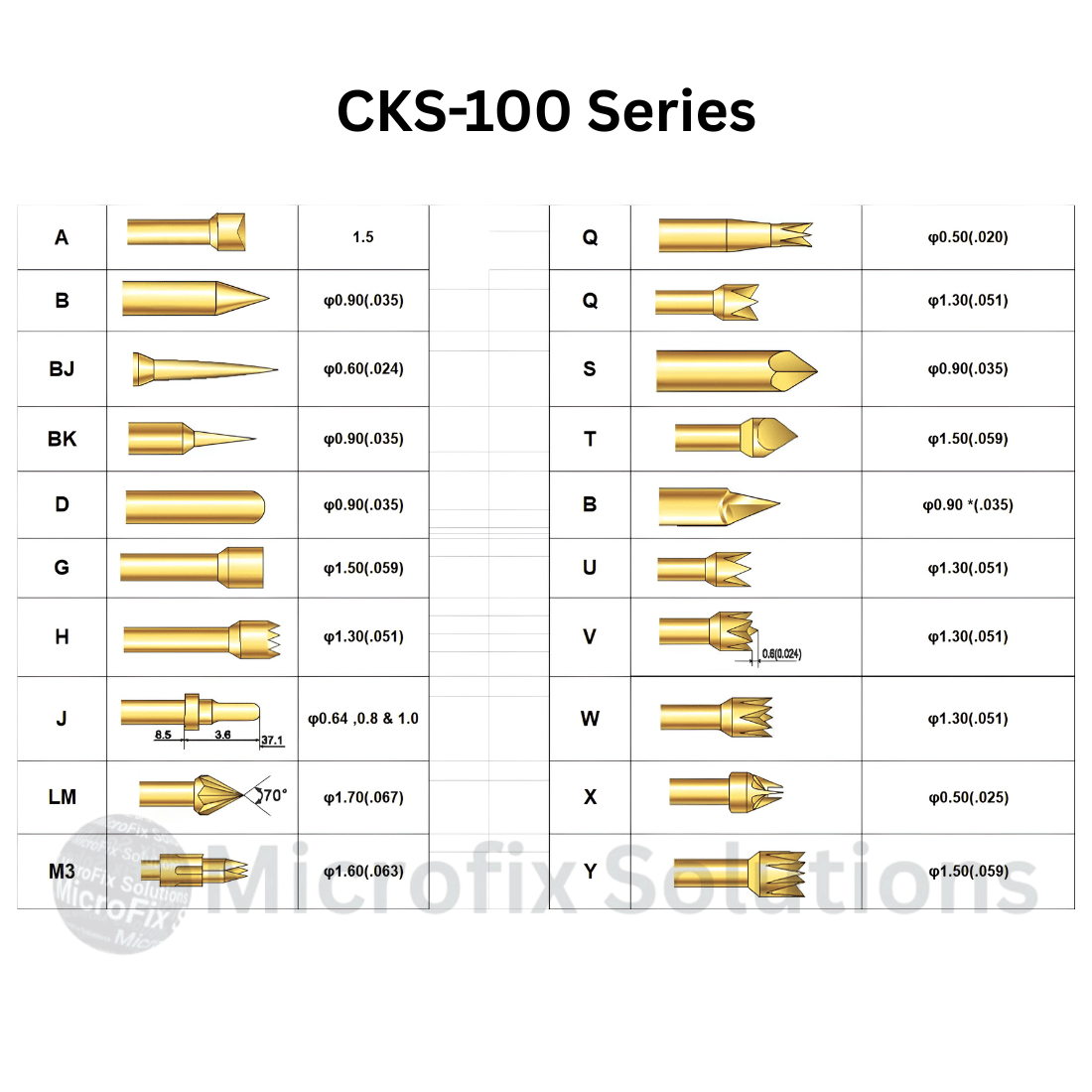

✔ Multiple Tip Style Options

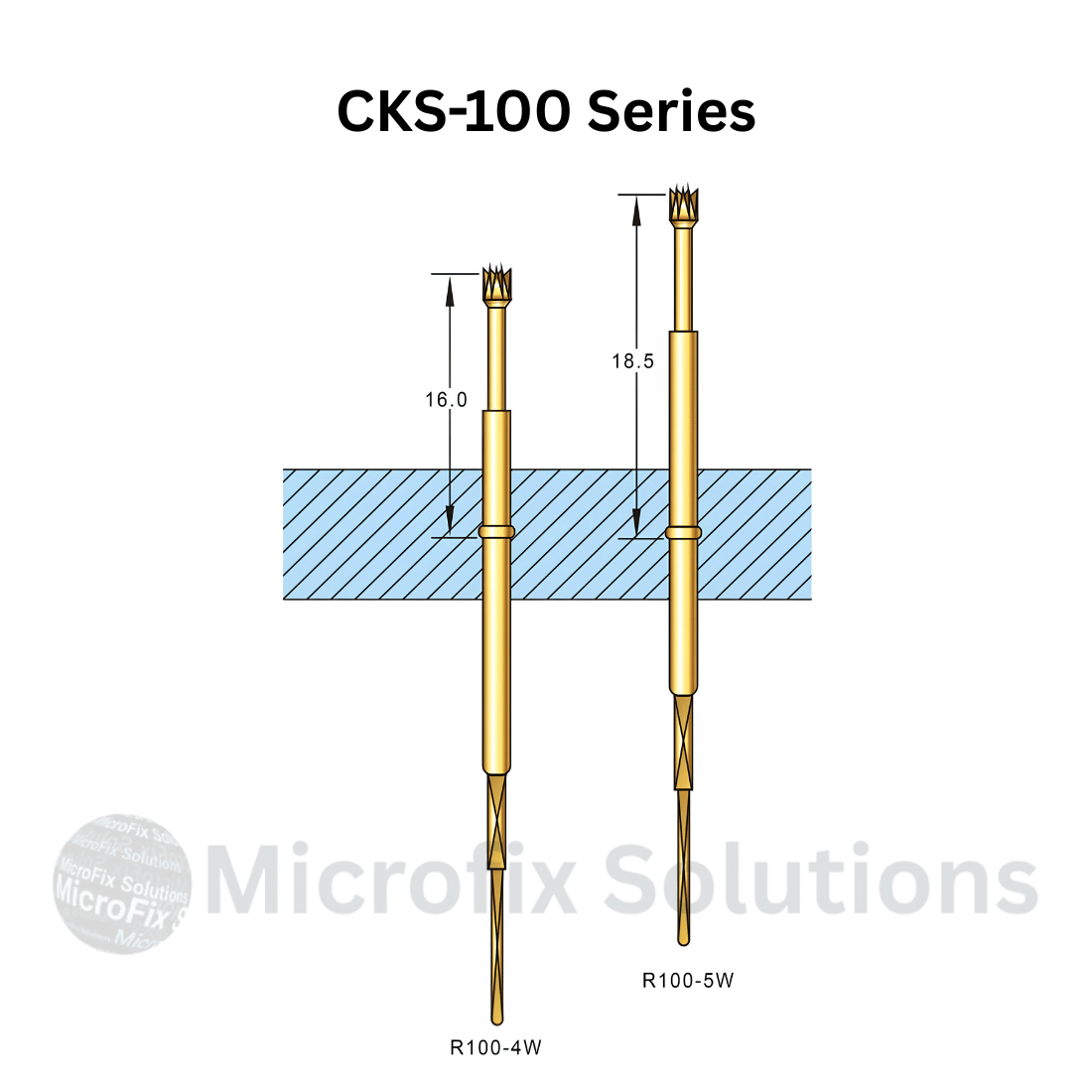

✔ Standard & Wire-Type Receptacle Compatibility
✔ Suitable for ICT, FCT & ATE Systems
✔ Ideal for High-Density PCB Testing
Applications
- PCB Testing
- In-Circuit Testing (ICT)
- Functional Testing (FCT)
- Automated Test Equipment (ATE)
- Semiconductor Testing
- Connector Testing
- Battery Contact Testing
- IC Programming Fixtures
- Electronics Manufacturing
- Production Line Inspection
- Quality Control Systems
