About This Product
The G1353 Series PCB Probes are precision spring-loaded test probes designed for reliable electrical contact in PCB testing, ICT/FCT test fixtures, and electronic test applications. The series offers multiple contact-tip configurations and matching receptacles for flexible fixture design.
Specification
| Specification | Details |
|---|---|
| Product Type | Printed Circuit Board Probe |
| Current Rating | 3A |
| Rated Resistance | 50 mΩ max. |
| Full Stroke | 6.70 mm |
| Spring Force | 180g / 280g |
| Plunger Material | BeCu or SK4, Rhodium / Gold Plated |
| Barrel Material | Phosphor Bronze, Gold Plated |
| Spring Material | Music Wire |

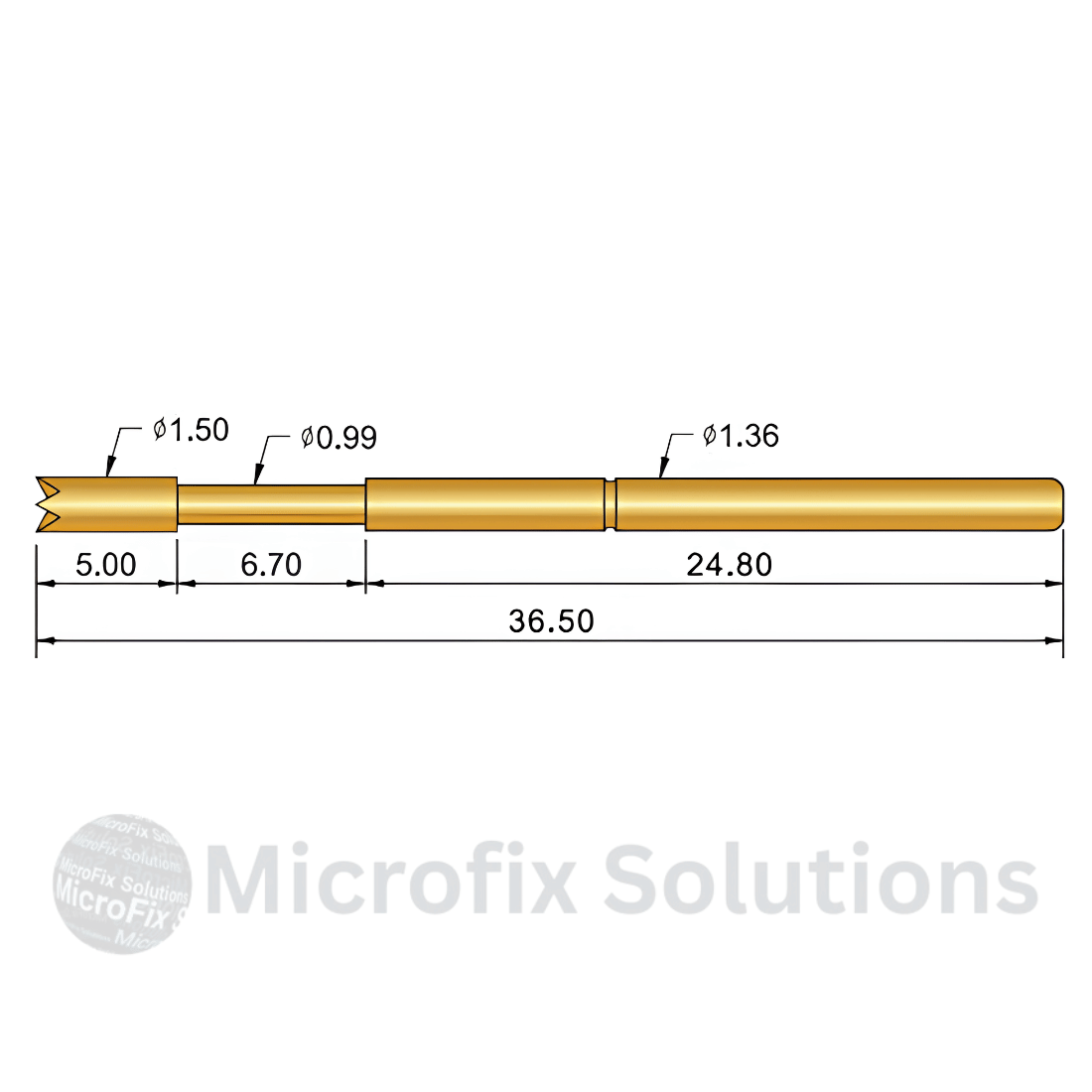

| Overall Length | 36.50 mm |
| Main Barrel Diameter | Ø1.36 mm |
| Plunger Diameter | Ø1.50 mm |
| Shaft Diameter | Ø0.99 mm |
Key Features
- High-quality spring-loaded construction
- 3A current rating for dependable electrical testing
- Low 50 mΩ rated resistance
- Multiple tip styles for different PCB contact requirements
- Gold-plated barrel for improved conductivity and corrosion resistance
- Available with different spring forces
- Suitable for automated and fixture-based PCB testing
Applications
- PCB electrical testing
- ICT and FCT test fixtures
- Electronic component testing
- Functional testing systems
- Automated test equipment
- Production-line quality inspection
