About This Product
The P-160 Spring Test Probe Pogo Pin is a premium spring-loaded contact probe engineered for precision electrical testing in high-density PCB fixtures and automated testing systems. Manufactured using high-quality brass and beryllium copper with a gold-plated finish, the P-160 series offers excellent conductivity, low contact resistance, and extended service life.
Its compact body design makes it ideal for PCB testing, ICT fixtures, functional testing, connector inspection, and electronic manufacturing applications. Available in multiple tip styles and receptacle configurations, the P-160 series delivers accurate and repeatable testing performance in demanding production environments.

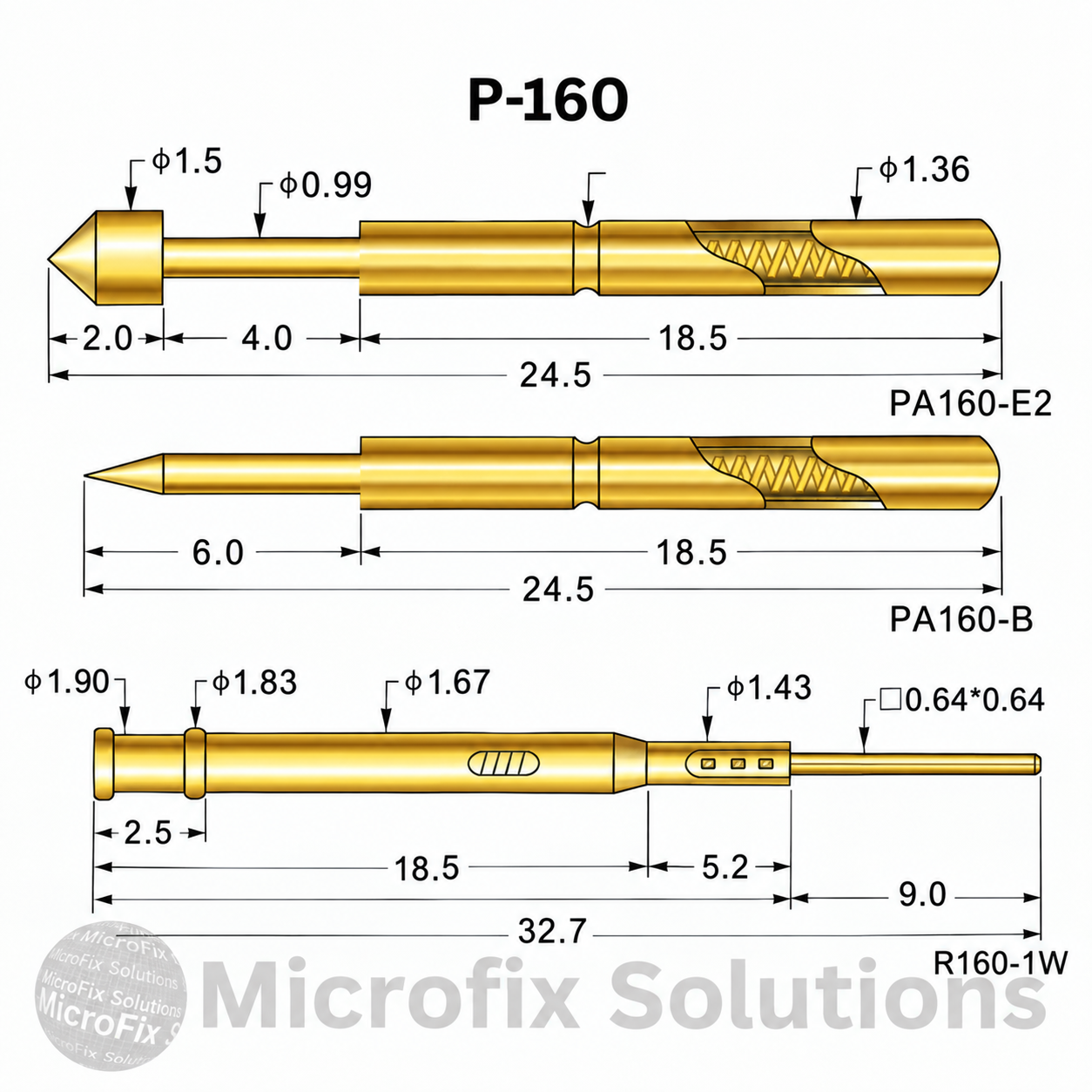

| Specification | Value |
|---|
| Product Series | P-160 |
| Probe Models | PA160-E2, PA160-B |
| Current Rating | 5A |
| Contact Resistance | ≤20 mΩ |
| Working Stroke | 2.5 mm |
| Contact Material | Beryllium Copper |
| Barrel Material | Brass |
| Surface Finish | Gold Plated |
| Head Diameter | Ø1.50 mm |
| Plunger Diameter | Ø0.99 mm |
| Barrel Diameter | Ø1.36 mm |
| Total Length | 24.5 mm |
| Mechanical Life | 100,000+ Cycles |
| Package Quantity | 5 Pcs |
Key Features
✔ Compact & High-Precision Design
✔ Gold-Plated Contact Surface
✔ Excellent Conductivity
✔ Low Contact Resistance
✔ Long Mechanical Life
✔ Multiple Contact Tip Options
✔ Compatible with Standard & Wire-Type Receptacles
✔ Reliable Performance in ICT & FCT Fixtures
Applications
- PCB Testing
- ICT Fixtures
- Functional Testing (FCT)
- Bed-of-Nails Testing
- Automated Test Equipment (ATE)
- Connector Testing
- Electronic Manufacturing
- Quality Inspection Systems
- Production Line Testing
- Electronic Assembly Verification
