About This Product
The KGZ265(L32) / R-KGZ265(L32) Switch Probe Series is designed for precise contact detection and switching operations in cable harness and electronic testing applications. Its spring-loaded construction provides controlled movement and repeatable contact during continuous testing cycles.

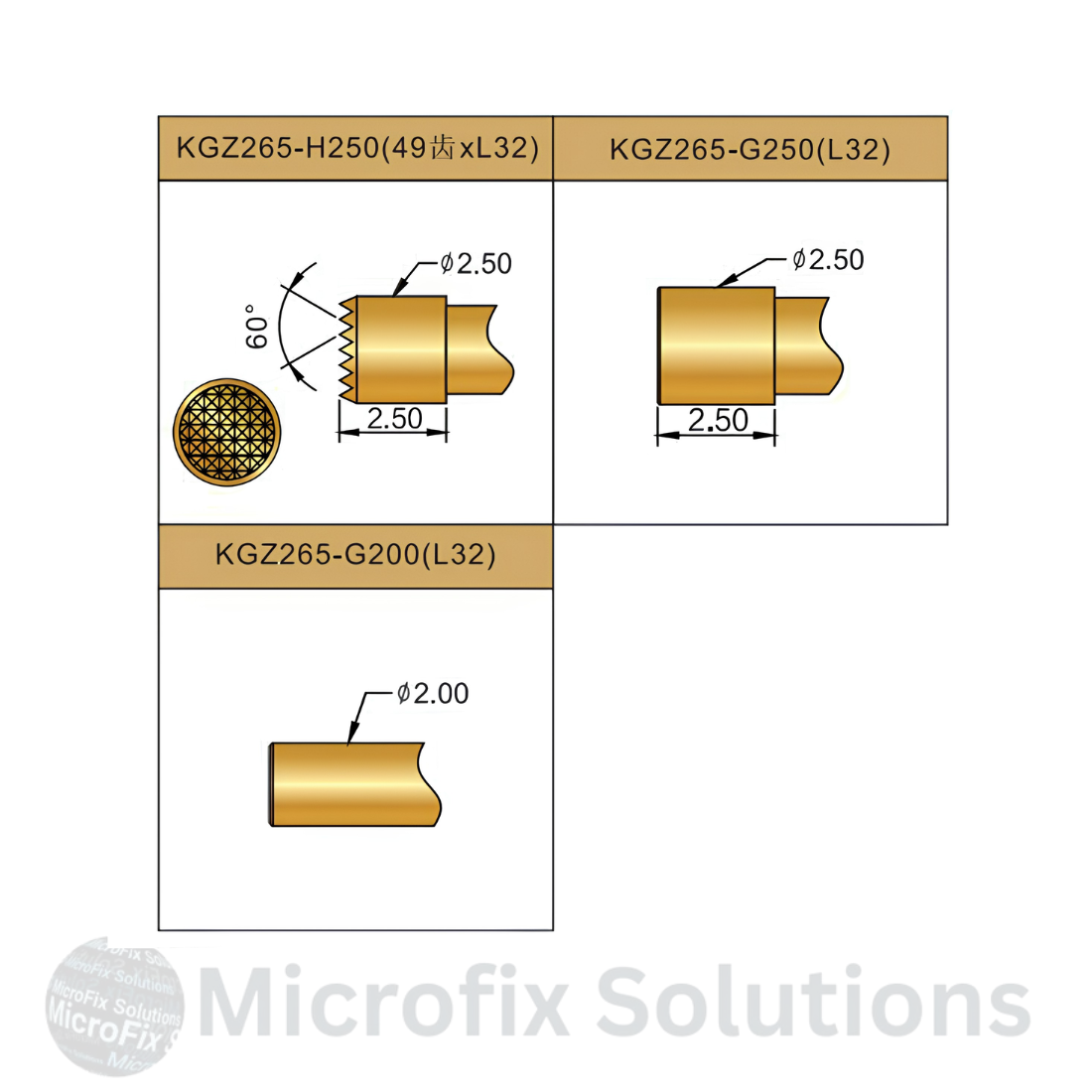

The probe uses gold-plated components for dependable electrical contact and incorporates PEEK insulation for reliable isolation. With multiple tip configurations and receptacle options, the KGZ265(L32) series can be integrated into custom cable harness fixtures, continuity testing systems, functional test equipment, and automated testing setups.

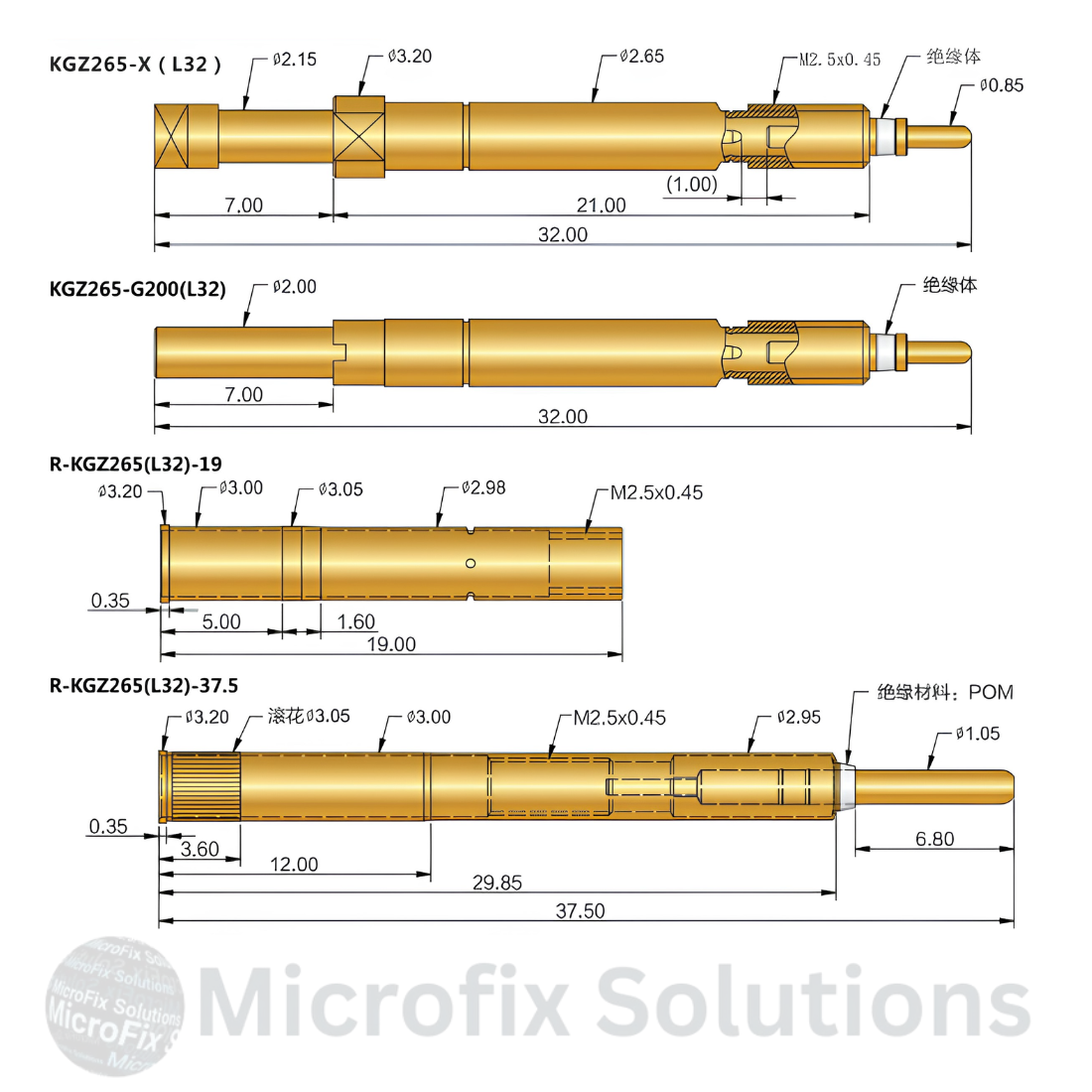

| Specification | Details |
|---|---|
| Series | KGZ265(L32) / R-KGZ265(L32) |
| Product Type | Switch Probe |
| Switch Distance | 1.00 mm |
| Full Stroke | 4.00 mm |
| Rated Stroke | 2.50 mm |
| Spring Force | 80 / 200 gf (0.8N / 2N) |
| Plunger | Brass, Gold-Plated |
| Barrel | Brass, Gold-Plated |
| Spring | SUS, Gold-Plated |
| Receptacle | Brass, Gold-Plated |
| Insulation | PEEK |
Applications
- Cable harness testing, continuity testing, connector testing, functional test fixtures, electronic component testing, automated testing equipment, and custom test fixtures.
