About This Product
The 290X3600 Battery Test High Current Probe is designed for reliable current and voltage measurement in battery manufacturing and industrial electronic test fixtures. Its spring-loaded construction maintains consistent contact pressure on battery terminals and other conductive surfaces during repetitive testing.
The probe supports a 15A current rating with less than 30 mΩ rated resistance, helping provide stable electrical performance in high-current testing applications.

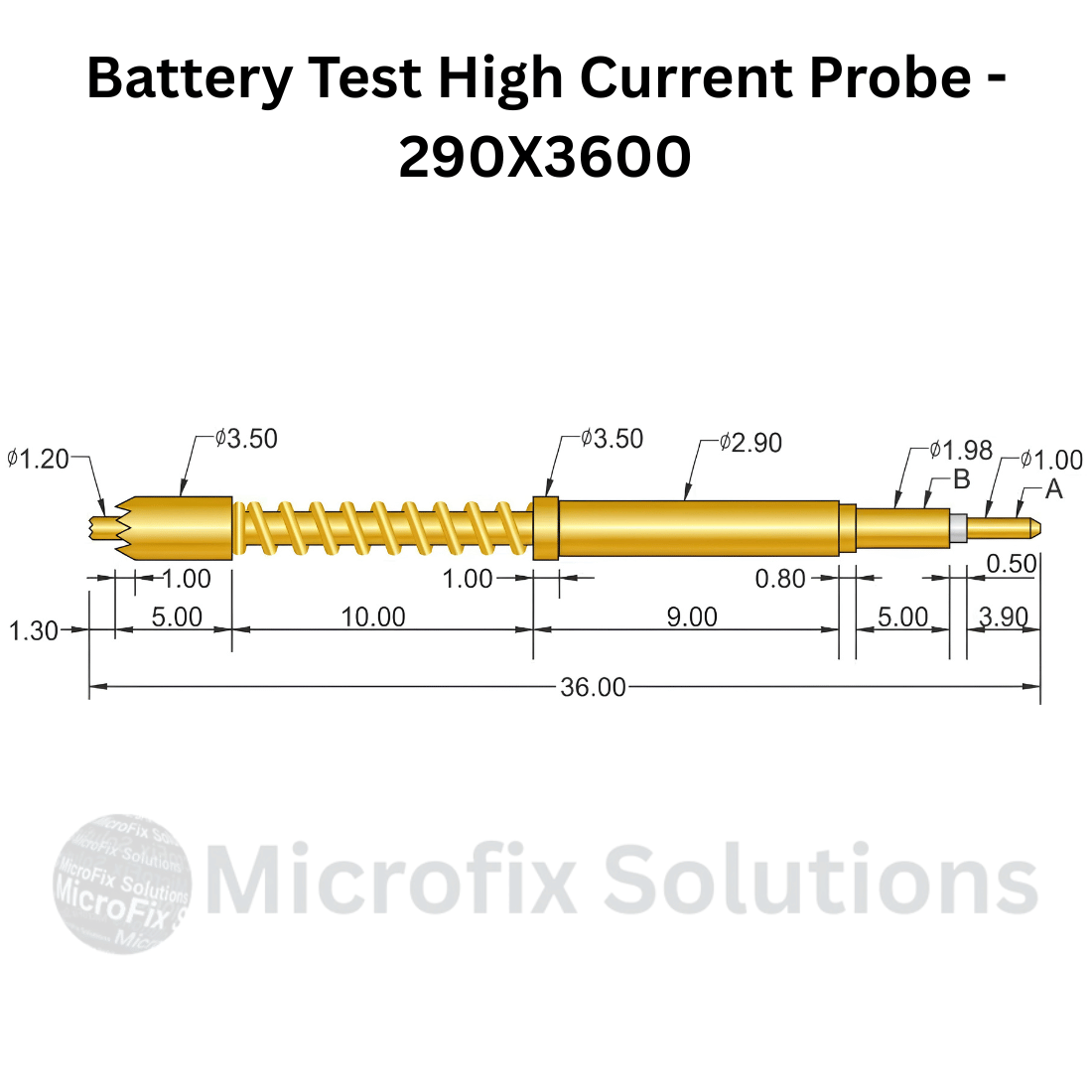

Based on the supplied engineering drawing, the probe has a 36.00 mm overall length, Ø2.90 mm main body diameter, Ø3.50 mm collar/body section, and a multi-point crown-style contact tip. The exposed spring construction provides substantial travel for accommodating variations in the device under test.
It is particularly suitable for battery cell testing, charge/discharge test fixtures, battery production lines, automotive electronics, power electronics, and custom automated test systems.
Specification
| Specification | Value |
|---|
| Product Series | Battery Test High Current Probe |
| Model | 290X3600 |
| Probe Type | Current & Voltage Test Probe |
| Current Rating | 15 A |
| Rated Resistance | <30 mΩ |
| Overall Length | 36.00 mm |
| Main Body Diameter | Ø2.90 mm |
| Collar Diameter | Ø3.50 mm |
| Contact Head Diameter | Ø3.50 mm |
| Contact Tip Diameter | Ø1.20 mm |
| Plunger / Shaft Diameter | Ø1.98 mm |
| Rear Contact Diameter (A) | Ø1.00 mm |
| Front Section Length | 5.00 mm |
| Spring Section Length | 10.00 mm |
| Main Body Length | 9.00 mm |
| Rear Section Length | 5.00 mm |
| Rear Pin Length | 3.90 mm |
| Tip Style | Multi-Point / Crown Contact |
| Package Quantity | 5 Pcs |
Key Features
- 15A high-current capability
- Less than 30 mΩ rated resistance
- Designed for simultaneous current and voltage testing
- Spring-loaded contact mechanism
- Multi-point crown contact tip
- Stable contact with battery terminals
- Compensates for terminal height variations
- Compact 36 mm construction
- Suitable for repetitive production testing
- Designed for battery and high-current test fixtures
Applications
- Battery Cell Testing
- Battery Pack Testing
- Battery Charge & Discharge Testing
- Current & Voltage Measurement
- Lithium-Ion Battery Testing
- Battery Formation Equipment
- Battery Terminal Testing
- Automotive Battery Testing
- EV Battery Test Fixtures
- Power Electronics Testing
- Automated Test Equipment (ATE)
- Production Line Quality Testing
