About This Product
The PH-18 High Current Test Probe is designed for demanding electronic and electrical testing applications requiring strong contact pressure, stable conductivity, and reliable repeated operation.
With a 3.5 mm mounting hole, 13 mm full travel, and approximately 300g spring force, the PH-18 provides consistent contact with terminals, connectors, PCB test points, battery contacts, and wiring harness components. The probe is rated for 5A current with approximately 50 mΩ contact resistance.
Its robust construction and long spring-loaded travel make it suitable for ICT/FCT fixtures, automated test equipment, automotive electronics, and production-line testing.
Specification

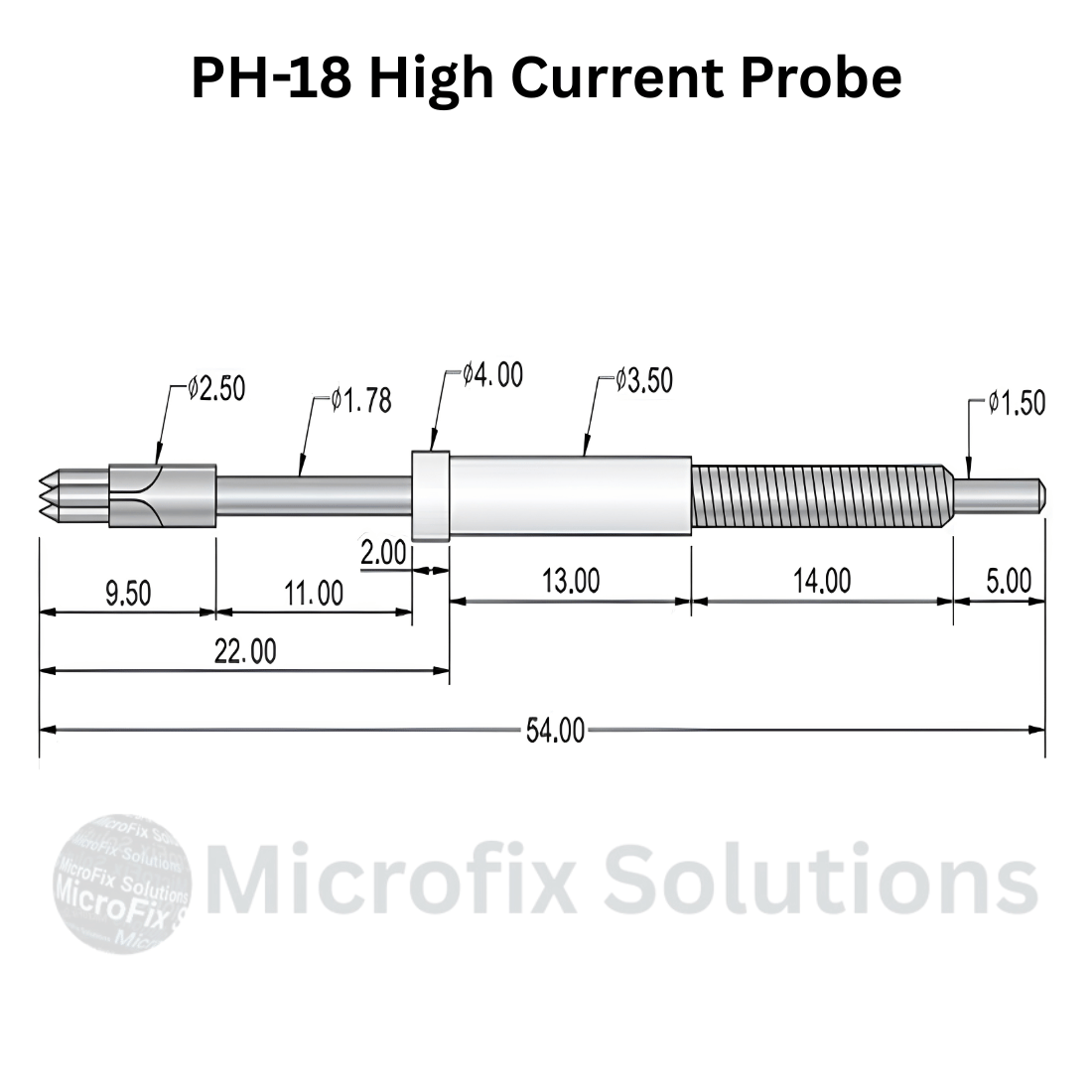

| Specification | Value |
|---|---|
| Product Series | PH Series |
| Model | PH-18 |
| Product Type | High Current Test Probe |
| Current Rating | 5 A |
| Contact Resistance | 50 mΩ |
| Full / Maximum Stroke | 13.0 mm |
| Spring Force | Approx. 300 g |
| Recommended Minimum Center | 4.30 mm |
| Mounting Hole Size | Ø3.50 mm |
| Overall Length | 54.00 mm* |
| Tip Diameter | Ø2.50 mm |
| Plunger Diameter | Ø1.78 mm |
| Collar Diameter | Ø4.00 mm |
| Main Body Diameter | Ø3.50 mm |
| Rear Contact Diameter | Ø1.50 mm |
| Tip Section Length | 9.50 mm |
| Plunger Section Length | 11.00 mm |
| Collar Length | 2.00 mm |
| Main Body Section | 13.00 mm |
| Threaded Section | 14.00 mm |
| Rear Pin Length | 5.00 mm |
| Plunger Material | Beryllium Copper (BeCu) |
| Spring Material | SUS304 |
| Finish | Nickel or Gold Plated |
| Package Quantity | 5 Pcs |
Key Features
- 5A current carrying capacity
- 50 mΩ contact resistance
- Heavy-duty spring-loaded construction
- 13 mm full travel
- Approx. 300g spring force
- Ø3.50 mm fixture mounting
- Stable and repeatable electrical contact
- Suitable for high-cycle production testing
- Nickel or gold-plated finish options
- Designed for industrial testing fixtures
Applications
- High Current Electrical Testing
- PCB Testing
- ICT Test Fixtures
- Functional Circuit Testing (FCT)
- Wire Harness Testing
- Connector & Terminal Testing
- Battery Contact Testing
- Automotive Electronics Testing
- Power Electronics Testing
- Automated Test Equipment (ATE)
- Production Line Testing
- Custom Test Fixtures
