About This Product
The PH-15 High Current Test Probe is engineered for applications requiring stable electrical contact, strong spring pressure, and reliable performance during repeated production testing.
Its robust 54 mm overall length and Ø3.0 mm mounting size make it suitable for industrial fixtures where larger contact surfaces and dependable mechanical performance are required. The spring-loaded design compensates for variations in the device under test while maintaining consistent contact pressure.
The PH-15 can be used for PCB testing, functional testing, connector inspection, battery contacts, automotive electronics, and custom automated test fixtures. Available references for the PH-15 specify a 3.0 mm mounting hole, 13 mm full travel, approximately 300 g spring force, 5 A current rating, and 50 mΩ contact resistance.

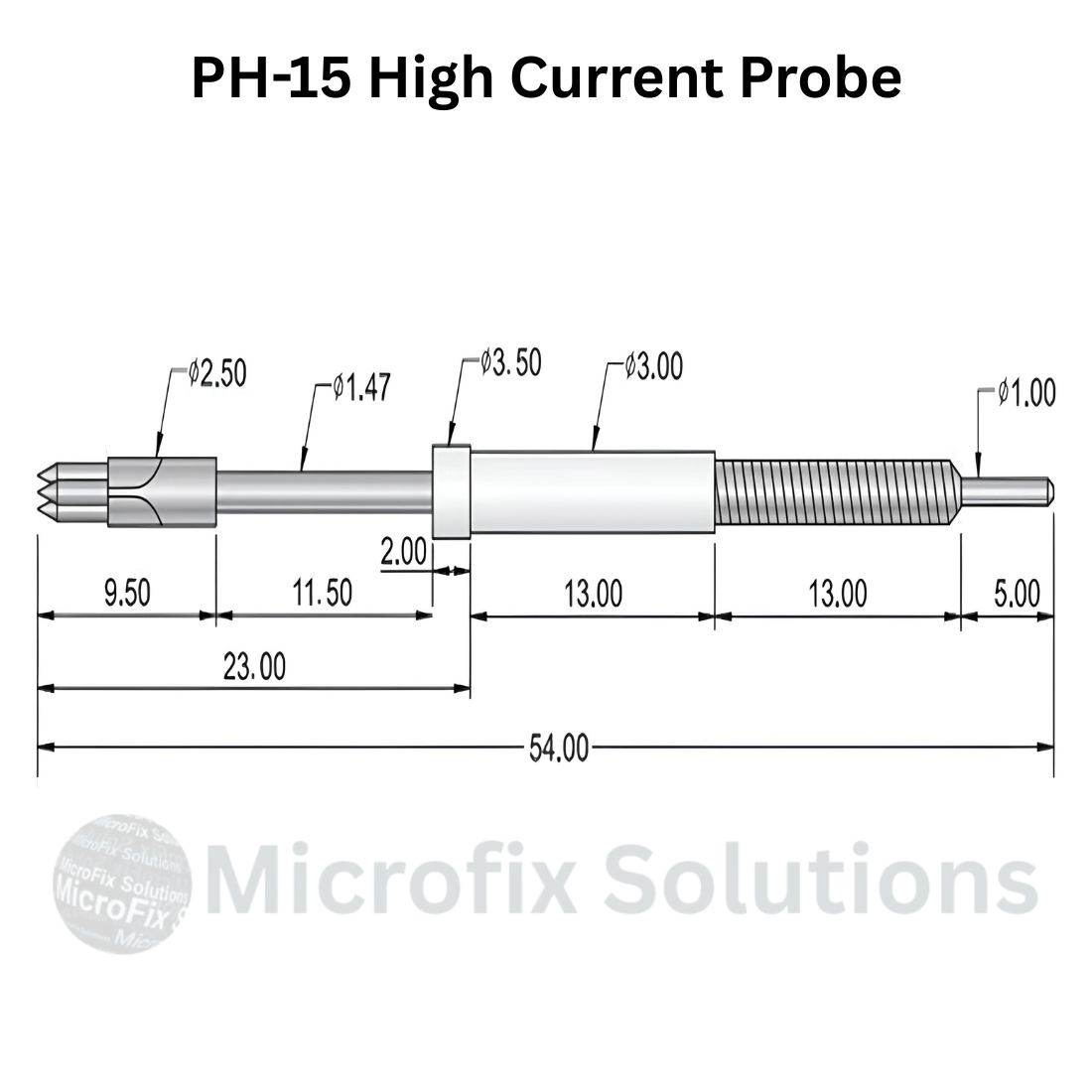

specification
| specification | Value |
|---|
| Product Series | PH Series |
| Model | PH-15 |
| Product Type | High Current Test Probe |
| Current Rating | 5 A |
| Contact Resistance | 50 mΩ |
| Full / Maximum Stroke | 13.0 mm |
| Spring Force | Approx. 300 g |
| Recommended Minimum Center | 3.5 mm |
| Mounting Hole Size | Ø3.00 mm |
| Overall Length | 54.00 mm |
| Tip Diameter | Ø2.50 mm |
| Plunger Diameter | Ø1.47 mm |
| Collar Diameter | Ø3.50 mm |
| Main Body Diameter | Ø3.00 mm |
| Rear Contact Diameter | Ø1.00 mm |
| Tip Section Length | 9.50 mm |
| Plunger Section Length | 11.50 mm |
| Collar Length | 2.00 mm |
| Main Body Length | 13.00 mm |
| Rear Threaded Section | 13.00 mm |
| Rear Pin Length | 5.00 mm |
| Finish | Gold / Nickel Plated Options |
| Package Quantity | 5 Pcs |
Key Features
- Heavy-duty spring-loaded construction
- 5 A current carrying capacity
- Ø3.0 mm fixture mounting
- 13 mm full travel
- Approx. 300 g contact force
- Stable contact during repeated testing
- Suitable for industrial test fixtures
- Replaceable/contact-tip configuration
- Long 54 mm probe construction
Applications
- High-current electrical testing
- PCB testing
- Functional Circuit Testing (FCT)
- Wire harness testing
- Connector and terminal testing
- Battery contact testing
- Automotive electronics testing
- Power electronics testing
- Automated Test Equipment (ATE)
- Production-line test fixtures
- Custom electronic test systems
